Clutch/parking sensor problem/error in Renault Grand Scenic
- check parking brake
Now I have Renault Grand Scenic 2005 1.6 16V and had to solve problem with Parking B
rake problem.
On my dashboard appeared after a while a message - Check Parking Brake.
But important thing is, that, the notification disappeared after I push the clutch. Even just a bit, so It is not the Parking Brake (btw. I have an automatic one).
So I was pretty sure that it is not the brake but some sensor.
There are 3 sensors connected to the clutch pedal and I described below how to get into them and basically fix them.
To do so, you have to dismantle few covers and plastics.
Below step by step in pictures how to do it.
There are three screws and two clips holding the cover
Lift it very easy up and then pull toward windscreen
Three spots where I lifted the cover
The orange socket is for additional switches
Blue plug will go off it self after you pull the black buckle anticlockwise
The cover is removed, now you have full acces to the sensors.
As you can see you have three sensors (follow the wires); I am not sure which one exactly is responsible for Error so I took "care" all of them
Two of them are exactly the same (the way they work)

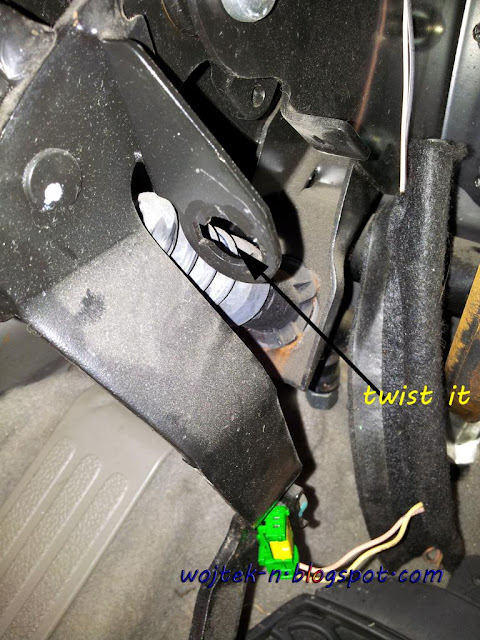

To remove them twist the body by 90 degrees anticlockwise
The third sensor is a bit picky. Has a kind of twist lock (take a look on pictures below)
Now let take a look inside
Two microbrushes slide on track
Clean brushes and track - you can use a special liquid called Kontakt (last picture). But just not even a drop of it put on the track, the best way is to use tiny small needle
Because the body of sensor (grey/blue part) is very flexible, I opened it by lifting it up with flat-head screwdriver (very tiny), then moved side to side
That is what you will find inside the sensor
Clean the connectors by soft wire brush, then put a drop of Kontakt
I was wondering how does it work. Well when you push the clutch pedal the pin goes inside and mechanism disconnect the circuit. But here I found the problem. The spring was not strong enough to move pin back on it initial position. so...
... I make it a bit bigger, basically I stretched spring and put it back inside sensor's body.
That fixed my problem. After I assembled all part together again error dissapeared.
Good luck!
But important thing is, that, the notification disappeared after I push the clutch. Even just a bit, so It is not the Parking Brake (btw. I have an automatic one).
So I was pretty sure that it is not the brake but some sensor.
There are 3 sensors connected to the clutch pedal and I described below how to get into them and basically fix them.
To do so, you have to dismantle few covers and plastics.
Below step by step in pictures how to do it.
There are three screws and two clips holding the cover
Lift it very easy up and then pull toward windscreen
Three spots where I lifted the cover
The orange socket is for additional switches
Blue plug will go off it self after you pull the black buckle anticlockwise
The cover is removed, now you have full acces to the sensors.
As you can see you have three sensors (follow the wires); I am not sure which one exactly is responsible for Error so I took "care" all of them
Two of them are exactly the same (the way they work)
To remove them twist the body by 90 degrees anticlockwise
The third sensor is a bit picky. Has a kind of twist lock (take a look on pictures below)
Now let take a look inside
Two microbrushes slide on track
Clean brushes and track - you can use a special liquid called Kontakt (last picture). But just not even a drop of it put on the track, the best way is to use tiny small needle
Because the body of sensor (grey/blue part) is very flexible, I opened it by lifting it up with flat-head screwdriver (very tiny), then moved side to side
That is what you will find inside the sensor
Clean the connectors by soft wire brush, then put a drop of Kontakt
I was wondering how does it work. Well when you push the clutch pedal the pin goes inside and mechanism disconnect the circuit. But here I found the problem. The spring was not strong enough to move pin back on it initial position. so...
... I make it a bit bigger, basically I stretched spring and put it back inside sensor's body.
That fixed my problem. After I assembled all part together again error dissapeared.
Good luck!
